K3S上手玩

Dec 24, 2025 in UNDEFINED
k8s
6 min read

在上文 K3S 多云环境下的离线部署 中已经玩过了 1.27.3 版本的 k3s。在今年又重新玩了一遍，再次记录一下。这一次的重点是：

  1. IPv4/IPv6 双栈集群的搭建
  2. K3S 备份、升级、回滚
  3. Kubernetes Dashboard 部署
  4. ArgoCD 部署，实现 GitOps
  5. reloader 部署，实现配置变更自动重启 Pod

K3S 优势

K3S 是一个轻量级的 Kubernetes 发行版，专为资源受限的环境设计。它的优势包括：

  • 轻量级：K3S 的二进制文件非常小，适合在边缘设备和物联网设备上运行。
  • 易于安装和配置：
    • K3S 提供了简单的安装脚本，可以快速部署一个完整的 Kubernetes 集群。
    • 使用单个二进制文件(k3s)即可运行所有组件，简化了安装过程。
  • 低资源消耗：K3S 设计时考虑了资源效率，适合在低功耗设备上运行。
  • 内置组件：
    • K3S 集成了许多常用的 Kubernetes 组件，如 Flannel 网络插件和 SQLite 数据库，简化了集群管理。
    • 内置LoadBalancer 实现，而不是像 k8s 那样没有 LoadBalancer 实现，导致裸机安装情况下得用 NodePort、HostPort、HostNetwork 来暴露服务，或者安装 Metallb。
      • 使用 Node 的 ip 作为 LoadBalancer 的 ip。需要保证多个 LoaderBalancer Service 的端口不冲突
      • 具体实现见 klipper-lb，比较简单。是通过 NAT 将流量转发到 Service 的 Cluster IP 上，然后 kube-proxy 再将流量转发到 Pod 上（这一步包含负载均衡和故障迁移能力）
  • 文档docs.k3s.io很清晰。PS：不要看中文版的文档，也不要看 rancher 中国的文档，垃圾
  • Flannel 的 wireguard 后端支持允许多云环境下的集群网络互通

参考文档：

安装 K3S server

  1. 使用离线安装的方式，提前下载好 k3s 二进制文件和 airgap 镜像包
  2. 开启 IPv4/IPv6 双栈
  3. 使用 flannel 的 wireguard-native 后端，开启多云网络互通
  4. 仅给 containerd 配置代理环境变量，加速镜像拉取，不影响 kubectl、kubelet。参考：Configuring an HTTP proxy。
version=$(curl -s https://api.github.com/repos/k3s-io/k3s/releases/latest | jq -r '.tag_name')
version_url_encoded=$(echo $version | sed 's/+/%2B/g' | sed 's/\//\\\//g')
echo 安装 k3s 版本 $version
mkdir -p /var/lib/rancher/k3s/agent/images/
curl -L -o /var/lib/rancher/k3s/agent/images/k3s-airgap-images-amd64.tar.zst "https://us.arloor.dev/https://github.com/k3s-io/k3s/releases/download/${version_url_encoded}/k3s-airgap-images-amd64.tar.zst"
curl -L -o /tmp/k3s "https://us.arloor.dev/https://github.com/k3s-io/k3s/releases/download/${version_url_encoded}/k3s"
install /tmp/k3s /usr/local/bin/


curl -L "https://get.k3s.io/" -o k3s_init.sh
chmod +x k3s_init.sh
. unpass #取消我的http_proxy环境变量
CONTAINERD_HTTP_PROXY=http://127.0.0.1:3128 \
CONTAINERD_HTTPS_PROXY=http://127.0.0.1:3128 \
CONTAINERD_NO_PROXY=127.0.0.0/8,10.0.0.0/8,172.16.0.0/12,192.168.0.0/16 \
K3S_TOKEN=12345 \
INSTALL_K3S_SKIP_DOWNLOAD=true \
./k3s_init.sh \
--cluster-cidr=10.42.0.0/16,fd00:cafe:42::/56 --service-cidr=10.43.0.0/16,fd00:cafe:43::/112 --flannel-ipv6-masq \
--node-external-ip="`curl https://ttl.arloor.com/ip -k`" \
--flannel-backend=wireguard-native \
--flannel-external-ip \
cp -f /etc/rancher/k3s/k3s.yaml ~/.kube/config # 复制 kubeconfig 到默认位置
kubectl get pod -A --watch --output wide

安装 k3s agent

  1. 使用离线安装的方式，提前下载好 k3s 二进制文件和 airgap 镜像包
  2. 仅给 containerd 配置代理环境变量，加速镜像拉取，不影响 kubectl、kubelet。参考：Configuring an HTTP proxy。
k3s_server=https://v6.arloor.com:6443
version=$(curl -s https://api.github.com/repos/k3s-io/k3s/releases/latest | jq -r '.tag_name')
version_url_encoded=$(echo $version | sed 's/+/%2B/g' | sed 's/\//\\\//g')
echo 安装 k3s 版本 $version
mkdir -p /var/lib/rancher/k3s/agent/images/
curl -L -o /var/lib/rancher/k3s/agent/images/k3s-airgap-images-amd64.tar.zst "https://us.arloor.dev/https://github.com/k3s-io/k3s/releases/download/${version_url_encoded}/k3s-airgap-images-amd64.tar.zst"
curl -L -o /tmp/k3s "https://us.arloor.dev/https://github.com/k3s-io/k3s/releases/download/${version_url_encoded}/k3s"
install /tmp/k3s /usr/local/bin/


curl -L "https://get.k3s.io/" -o k3s_init.sh
chmod +x k3s_init.sh
. unpass #取消我的http_proxy环境变量
CONTAINERD_HTTP_PROXY=http://127.0.0.1:3128 \
CONTAINERD_HTTPS_PROXY=http://127.0.0.1:3128 \
CONTAINERD_NO_PROXY=127.0.0.0/8,10.0.0.0/8,172.16.0.0/12,192.168.0.0/16 \
K3S_TOKEN=12345 \
INSTALL_K3S_SKIP_DOWNLOAD=true \
K3S_URL=${k3s_server} \
./k3s_init.sh \
--node-external-ip="`curl https://ttl.arloor.com/ip -k`"

创建 ServiceAccount 和 ClusterRoleBinding

kubectl apply -f - <<EOF
apiVersion: v1
kind: ServiceAccount
metadata:
  name: arloor
  namespace: default

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: arloor
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: arloor
  namespace: default

---

apiVersion: v1
kind: Secret
metadata:
  name: arloor-secret
  namespace: default
  annotations:
    kubernetes.io/service-account.name: arloor
type: kubernetes.io/service-account-token
EOF

kubectl get secret/arloor-secret -o yaml #查看token字段，base64格式的
kubectl describe secret/arloor-secret # 查看token字段，原始的

重新签发 TLS 证书，增加自己的域名

domain=k3s.arloor.com
cat > /etc/rancher/k3s/config.yaml <<EOF
tls-san:
  - ${domain}
  - kubernetes
  - kubernetes.default
  - kubernetes.default.svc
  - kubernetes.default.svc.cluster.local
  - localhost
  - station
EOF
# 或者在k3s服务中增加 --tls-san xxx.com
systemctl restart k3s

设置私有镜像仓库

cat > /etc/rancher/k3s/registries.yaml <<EOF
mirrors:
  docker.io:
    endpoint:
      - "http://ttl.arloor.com:6666"
EOF
systemctl restart k3s

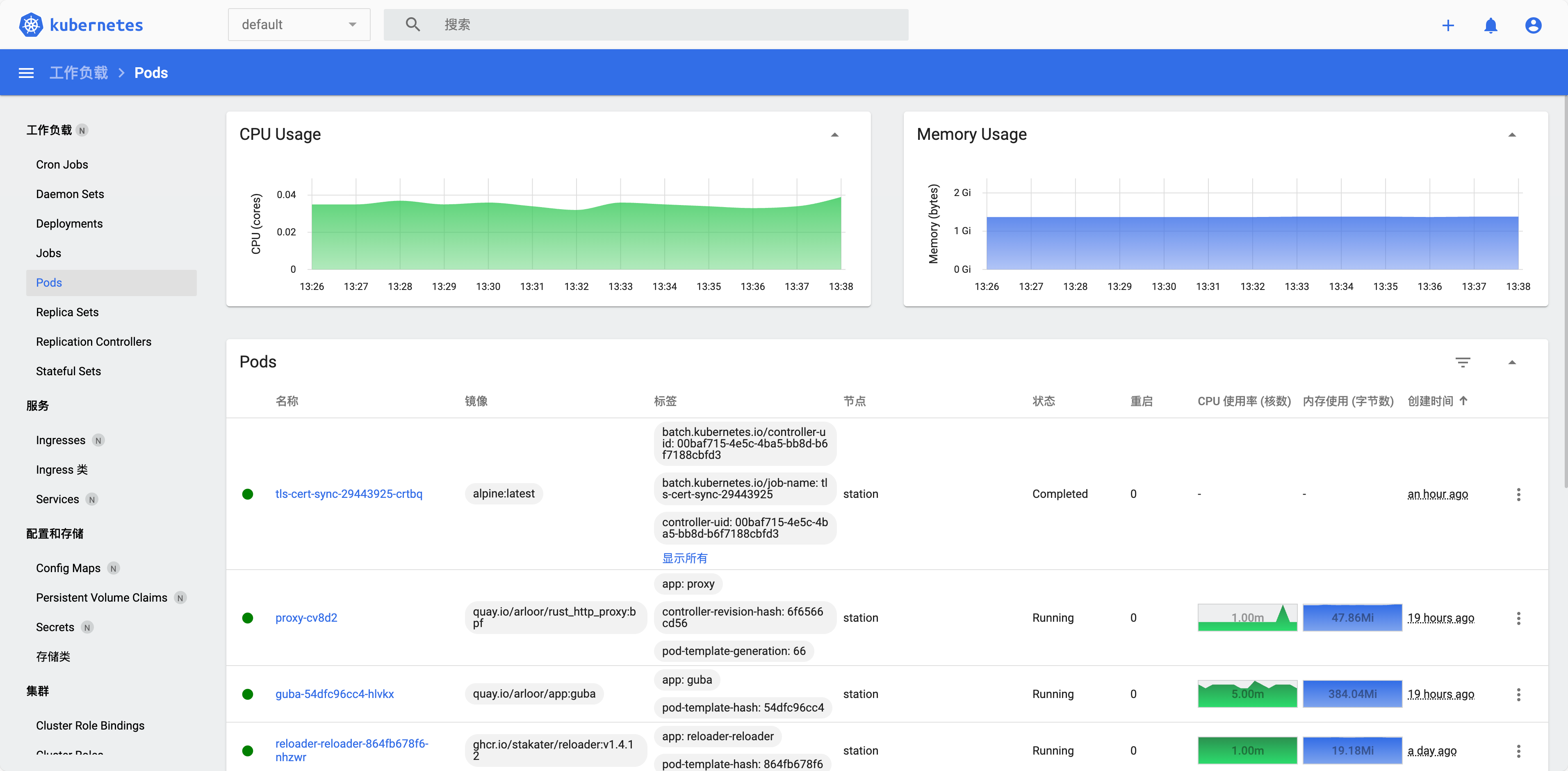

安装 kubernetes-dashboard

helm repo add kubernetes-dashboard https://kubernetes.github.io/dashboard/
helm repo update
# helm search repo kubernetes-dashboard -l
helm show values kubernetes-dashboard/kubernetes-dashboard --version 7.14.0 > /tmp/values.yaml
# 升级也使用相同的命令
helm upgrade --install kubernetes-dashboard kubernetes-dashboard/kubernetes-dashboard --create-namespace --namespace kubernetes-dashboard --set kong.enabled=false

alt text

配置 kubernetes-dashboard 的 ingress

host="dash.arloor.com" # host="*.arloor.com"支持通配符
kubectl apply -f - <<EOF
# 创建k3s-arloor-tls secret
apiVersion: v1
kind: Secret
metadata:
  # secret名
  name: k3s-arloor-tls
  # 证书放置的namespace
  namespace: kubernetes-dashboard
type: kubernetes.io/tls
data:
  tls.crt: $(cat /root/.acme.sh/arloor.dev/fullchain.cer | base64 -w 0)
  tls.key: $(cat /root/.acme.sh/arloor.dev/arloor.dev.key| base64 -w 0)
---
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: dashboard-http-redirect
  namespace: kubernetes-dashboard
spec:
  redirectScheme:
    scheme: https
    permanent: true
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dashboard-http-redirect
  namespace: kubernetes-dashboard
  annotations:
    traefik.ingress.kubernetes.io/router.entrypoints: web
    # MUST be <namespace>-<name>@kubernetescrd
    traefik.ingress.kubernetes.io/router.middlewares: kubernetes-dashboard-dashboard-http-redirect@kubernetescrd
spec:
  rules:
  - host: "${host}"
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: kubernetes-dashboard-web
            port:
              number: 8000
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dashboard-https
  namespace: kubernetes-dashboard
  annotations:
    traefik.ingress.kubernetes.io/router.entrypoints: websecure
    traefik.ingress.kubernetes.io/router.tls: "true"
spec:
  tls:
  - hosts:
    - "${host}"
    secretName: k3s-arloor-tls
  rules:
    - host: "${host}"
      http:
        paths:
          - path: /api/v1/login
            pathType: Prefix
            backend:
              service:
                name: kubernetes-dashboard-auth
                port:
                  number: 8000
          - path: /api/v1/csrftoken/login
            pathType: Prefix
            backend:
              service:
                name: kubernetes-dashboard-auth
                port:
                  number: 8000
          - path: /api/v1/me
            pathType: Prefix
            backend:
              service:
                name: kubernetes-dashboard-auth
                port:
                  number: 8000
          - path: /api
            pathType: Prefix
            backend:
              service:
                name: kubernetes-dashboard-api
                port:
                  number: 8000
          - path: /metrics
            pathType: Prefix
            backend:
              service:
                name: kubernetes-dashboard-api
                port:
                  number: 8000
          - path: /
            pathType: Prefix
            backend:
              service:
                name: kubernetes-dashboard-web
                port:
                  number: 8000
EOF

修改 traefik 的 websecure 端口

Traefik Ingress Controller

cat > /var/lib/rancher/k3s/server/manifests/traefik-mine.yaml << EOF
apiVersion: helm.cattle.io/v1
kind: HelmChartConfig
metadata:
  name: traefik
  namespace: kube-system
spec:
  valuesContent: |-
    ports:
      websecure:
        port: 8443
        exposedPort: 8443
EOF
kubectl apply -f /var/lib/rancher/k3s/server/manifests/traefik-mine.yaml

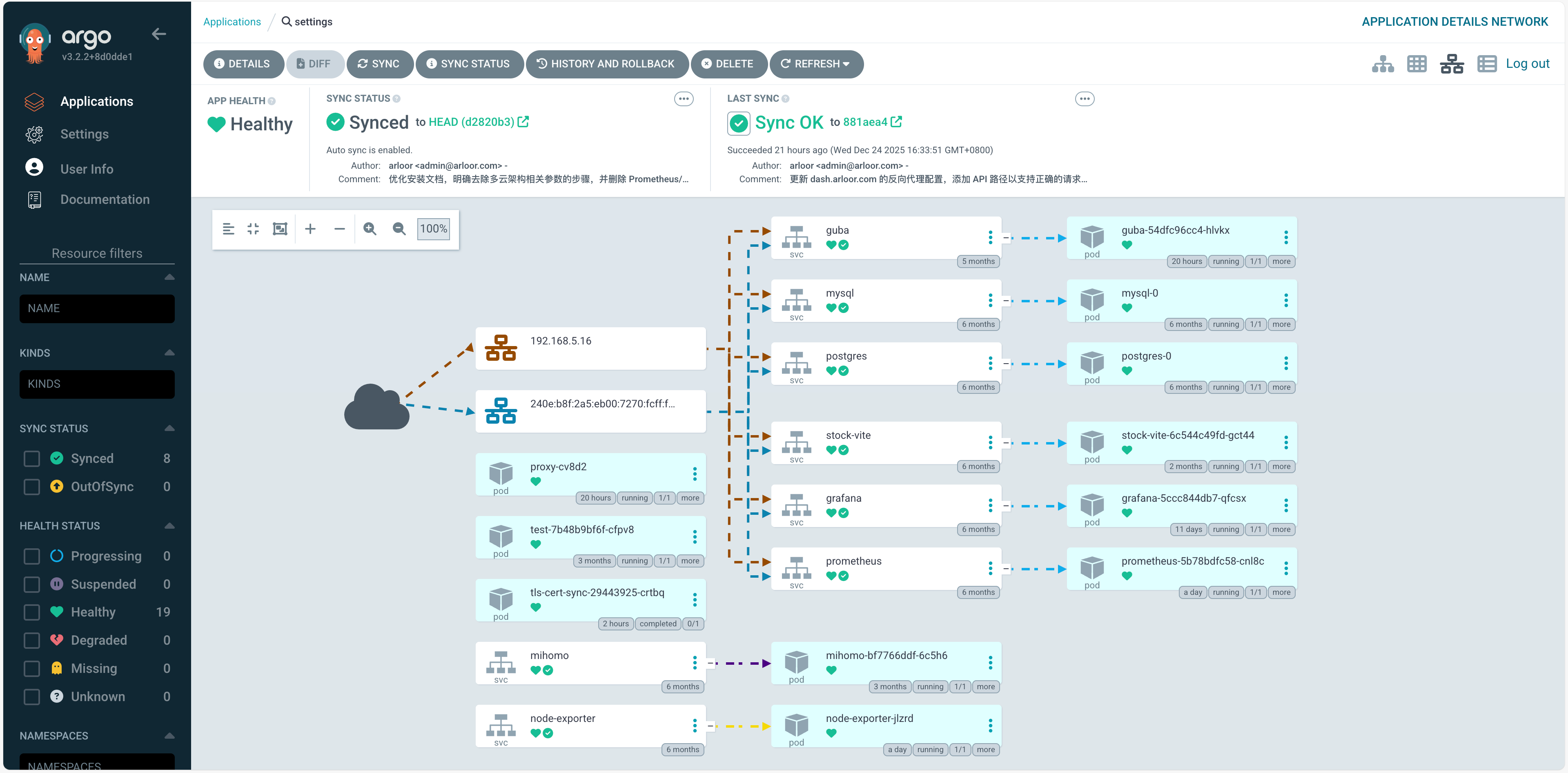

Argo CD

kubectl create namespace argocd
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml
# kubectl get pods -n argocd -w
# 修改argocd-server的service类型为NodePort或者LoadBalancer，方便外部访问
kubectl -n argocd get svc argocd-server -o yaml | sed 's/type: ClusterIP/type: NodePort/' | kubectl apply -f -
# 获取初始密码
kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d; echo
# kubectl port-forward service/argocd-server  8080:80 -n argocd

# argocd-server不再使用tls
kubectl patch configmap argocd-cmd-params-cm -n argocd --type merge -p '{"data":{"server.insecure":"true"}}'
kubectl rollout restart deployment argocd-server -n argocd

# 为argocd-repo-server配置git HTTP代理
kubectl set env deployment/argocd-repo-server -n argocd HTTP_PROXY=http://mihomo.default.svc.cluster.local:7890 HTTPS_PROXY=http://mihomo.default.svc.cluster.local:7890 NO_PROXY=localhost,127.0.0.1,10.0.0.0/8,.svc,.cluster.local
kubectl rollout restart deploy argocd-repo-server -n argocd;

# 创建 argocd 的 TLS secret
kubectl apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: k3s-arloor-tls
  namespace: argocd
type: kubernetes.io/tls
data:
  tls.crt: $(cat /root/.acme.sh/arloor.dev/fullchain.cer | base64 -w 0)
  tls.key: $(cat /root/.acme.sh/arloor.dev/arloor.dev.key| base64 -w 0)
EOF

# 配置 argocd 的 ingressroute
kubectl apply -f - <<'EOF'
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: argocd-server
  namespace: argocd
spec:
  entryPoints:
    - websecure
  routes:
    - kind: Rule
      match: Host(`argocd.arloor.com`)
      priority: 10
      services:
        - name: argocd-server
          port: 80
    - kind: Rule
      match: Host(`argocd.arloor.com`) && Headers(`Content-Type`, `application/grpc`)
      priority: 11
      services:
        - name: argocd-server
          port: 80
          scheme: h2c
  tls:
    secretName: k3s-arloor-tls
EOF

alt text

删除 argocd

kubectl delete namespace argocd

此时还剩下 argocd 相关的 CRD 资源，可以通过下面命令删除

kubectl get crd | grep argoproj.io | awk '{print $1}' | xargs kubectl delete crd

还有一些 ClusterRole 和 ClusterRoleBinding 资源，可以通过下面命令删除

kubectl get clusterrole | grep argocd | awk '{print $1}' | xargs kubectl delete clusterrole
kubectl get clusterrolebinding | grep argocd | awk '{print $1}' | xargs kubectl delete clusterrolebinding

使用 Reloader 监听 cm 和 scr 的变化并重启工作负载

kubectl apply -f https://raw.githubusercontent.com/stakater/Reloader/master/deployments/kubernetes/reloader.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
  annotations:
    # 监听所有关联的 ConfigMap 和 Secret
    reloader.stakater.com/auto: "true"

    # 或者指定具体的 ConfigMap/Secret
    configmap.reloader.stakater.com/reload: "my-config,another-config"
    secret.reloader.stakater.com/reload: "my-secret"
spec:
  # ... deployment spec

支持 Deployment、DaemonSet、StatefulSet、ReplicaSet、CronJob

查看日志

kubectl logs -f deployment/reloader-reloader --tail 100

导入 ACME 的 TLS 证书

#! /bin/bash

namespace="default monitoring kubernetes-dashboard"
for ns in ${namespace}; do
  kubectl apply -f -  <<EOF
apiVersion: v1
kind: Secret
metadata:
  # secret名
  name: k3s-arloor-tls
  # 证书放置的namespace
  namespace: ${ns}
type: kubernetes.io/tls
data:
  tls.crt: $(cat /root/.acme.sh/arloor.dev/fullchain.cer | base64 -w 0)
  tls.key: $(cat /root/.acme.sh/arloor.dev/arloor.dev.key| base64 -w 0)
EOF
done

在 MacOS 上管理

mkdir -p ~/.kube
scp -P 2222 root@k3s.arloor.com:/etc/rancher/k3s/k3s.yaml ~/.kube/config
curl -LO "https://dl.k8s.io/release/v1.33.1/bin/darwin/arm64/kubectl"
chmod +x kubectl
mv kubectl /data/bin/
sed -i "" 's/127.0.0.1/v6.arloor.com/' ~/.kube/config
kubectl get nodes

在 Linux 上管理

mkdir -p ~/.kube
scp -P 2222 root@k3s.arloor.com:/etc/rancher/k3s/k3s.yaml ~/.kube/config
curl -LO "https://dl.k8s.io/release/v1.33.1/bin/linux/amd64/kubectl"
chmod +x kubectl
mv kubectl /data/bin/
sed -i 's/127.0.0.1/v6.arloor.com/' ~/.kube/config
kubectl get nodes

删除镜像

crictl rmi --prune
crictl rmi -a

快速 exec 容器

cat > /usr/local/bin/attach <<'EOF'
kubectl exec -it -n ${2:-default} $(kubectl get pods -l app=$1 -n ${2:-default} -o jsonpath='{.items[0].metadata.name}') -- /bin/sh
EOF
chmod +x /usr/local/bin/attach

第一个参数是 app label 的值，第二个参数是 namespace

查看日志

kubectl logs -f --tail 1000 --timestamps -l app=proxy

修改 app 的镜像

# 修改Deployment中的镜像
kubectl set image deployment/deployment-name container-name=new-image:tag -n namespace

# 示例
kubectl set image deployment/nginx-deployment nginx=nginx:1.21 -n default

# 修改DaemonSet中的镜像
kubectl set image daemonset/daemonset-name container-name=new-image:tag -n namespace

# 修改StatefulSet中的镜像
kubectl set image statefulset/statefulset-name container-name=new-image:tag -n namespace

查看集群资源使用情况

kubectl top pods -A --sum --sort-by=memory

备份 sqllite 数据和 server token

cat > /usr/local/bin/backup_k3s.sh <<'EOF'
#!/bin/bash

tar -zcvf k3s.server.db.tar.gz  -C /var/lib/rancher/k3s/server/db/ .
tar -zcvf k3s.server.token.tar.gz -C /var/lib/rancher/k3s/server token
EOF
chmod +x /usr/local/bin/backup_k3s.sh

k3s.server.db.tar.gz 和 k3s.server.db.tar.gz 分别是数据库和 token 的备份文件

恢复 sqllite 数据和 server token

恢复后你的工作负载会回到备份时的状态，之后的变更都会丢失

systemctl stop k3s
tar -zxvf k3s.server.db.tar.gz -C /var/lib/rancher/k3s/server/db/
tar -zxvf k3s.server.token.tar.gz -C /var/lib/rancher/k3s/server
systemctl start k3s

升级 k3s

先逐个升级 Server 节点，然后再升级 Agent 节点。

version=$(curl -s https://api.github.com/repos/k3s-io/k3s/releases/latest | jq -r '.tag_name')
version_url_encoded=$(echo $version | sed 's/+/%2B/g' | sed 's/\//\\\//g')
echo 安装 k3s 版本 $version
curl -L -o /tmp/k3s "https://us.arloor.dev/https://github.com/k3s-io/k3s/releases/download/${version_url_encoded}/k3s"
cp /usr/local/bin/k3s /usr/local/bin/k3s.bak.$(date +%F_%T)
install /tmp/k3s /usr/local/bin/
systemctl restart k3s # k3s-agent

回滚 k3s

恢复 sqllite 数据和 server token 到升级前的备份状态，然后替换回旧版本的 k3s 二进制文件

MacOS开机自启动、资源限制、定时任务
